ACS70331EESATR-2P5B3
Manufacturer:
Allegro Microsystems
Mfr.Part #:
ACS70331EESATR-2P5B3
Datasheet:
Description:

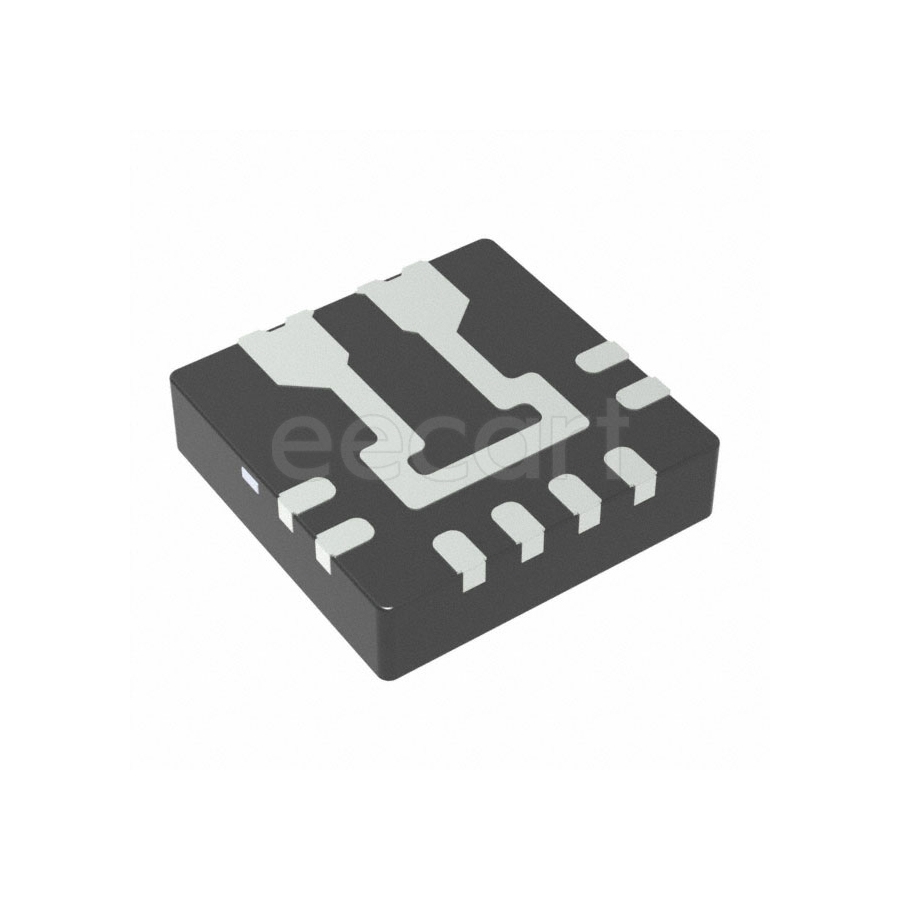

Current Sensors QFN-12 SMD/SMT Hall Effect, Open Loop 400 mV/A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 1.1 mΩ |
| Height | 800 µm |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Type | Hall Effect, Open Loop |
| Bandwidth | 1 MHz |
| Output Type | Voltage |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Supply Voltage | 4.5 V |
| Min Supply Voltage | 3 V |
| Accuracy | 2 % |
| Nominal Supply Voltage (DC) | 3.3 V |
| Linearity | 0.2 % |
| Ambient Temperature Range High | 85 °C |
| Response Time | 535 ns |
| Number of Channels | 1 |
| Operating Supply Current | 4.5 mA |
| Max Supply Current | 6 mA |
| Sensitivity | 400 mV/A |
| Isolation Voltage | 100 V |
| Sensing Method | Hall Effect |
| Current Sensing | 2.5 A |
| Max Junction Temperature (Tj) | 100 °C |
| Frequency Range | DC to 1 MHz |
Stock: 1766
Distributors
pcbx
pcbxUnit Price$1.31403
Ext.Price$1.31403
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31403 | $1.31403 |
| 10 | $1.05156 | $10.51560 |
| 25 | $1.02953 | $25.73825 |
| 50 | $1.00796 | $50.39800 |
| 100 | $0.97034 | $97.03400 |
| 300 | $0.92840 | $278.52000 |
| 500 | $0.88827 | $444.13500 |
| 1000 | $0.83869 | $838.69000 |
| 3000 | $0.80687 | $2420.61000 |
| 5000 | $0.77627 | $3881.35000 |
